SOLAR CABLE

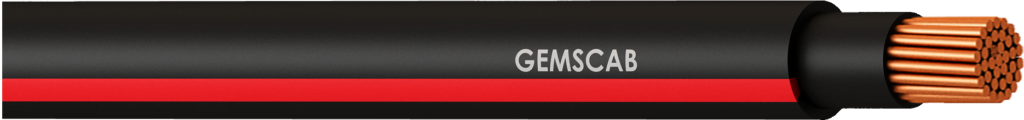

“GEMSCAB” make, AC “0.6/ 1.0kV”/ DC 1500 Volt, Flexible (Class 5) circular Tinned Copper conductor, Extruded cross linked ZHFR thermosetting insulated, and overall extruded cross linked ZHFR thermosetting outersheathed cables conforming to BS EN 50618.
![](https://sp-ao.shortpixel.ai/client/to_webp,q_glossy,ret_img,w_750,h_88/https://gemscab.com/wp-content/uploads/2024/01/Solar-Cable-Rev-Final-e1705486111446-1024x120.png)
![](https://sp-ao.shortpixel.ai/client/to_webp,q_glossy,ret_img,w_750,h_357/https://gemscab.com/wp-content/uploads/2024/01/Solar-Cable-1-1024x488.png)
PROPERTIES
- Used in extreme weather conditions (UV Resistance)
- Halogen-free: low smoke emission and low toxicity during fire
- Flame & Fire retardant
- Flexibility: for fast and easy installation
- Easy installation: with color identification
- Very good resistance to oil and chemicals
- Ozone & UV resistance
SPECIFICATION
- Type of appliance: Cable for Photovoltaic Systems
- Lower ambient temperature: -40°C
- Upper ambient temperature: +90°C
- Conductor According to class 5 of IEC 60228
- Operating Temperature: -40°C to +90°C
SIZE
INSULATION PROPERTIES
ZHFR
SHEATH PROPERTIES
ZHFR
CORE
1.5 - 240 sq.mm
🟡
🟡
1
