INSTRUMENTATION CABLES - MULTI CORE

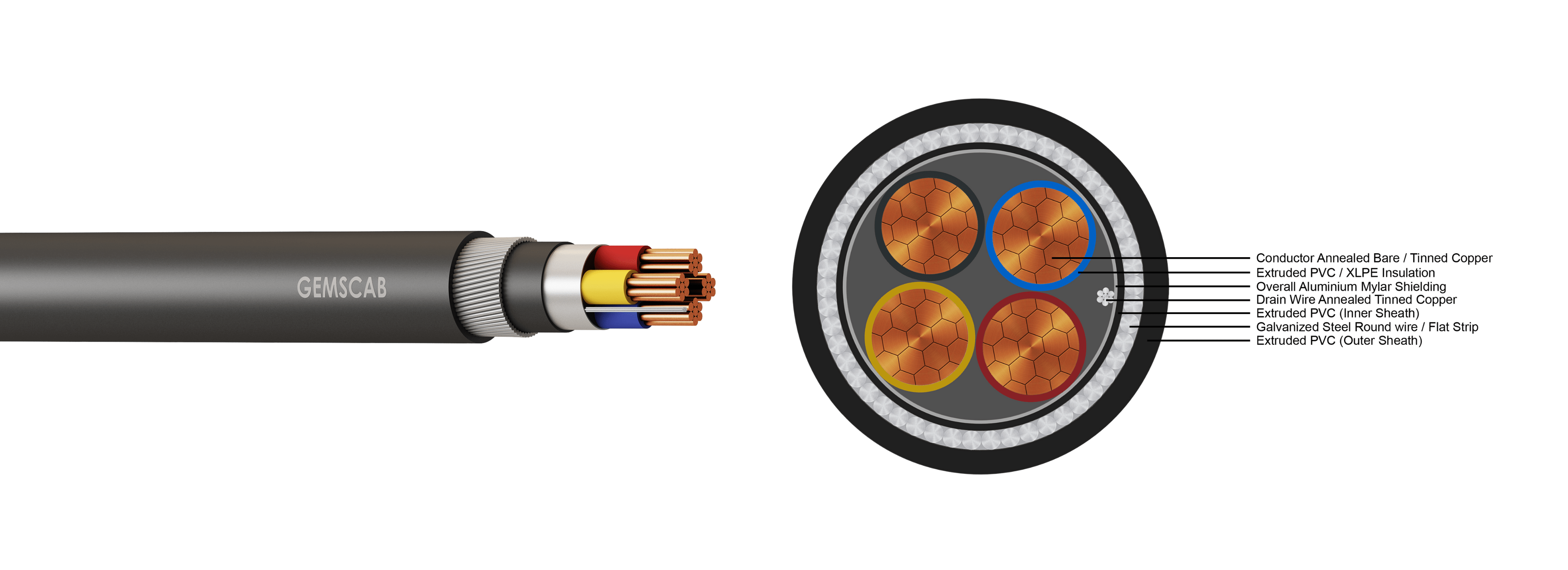

“GEMSCAB” make armoured screened cable generally as per BS EN 50288-7/ BS:5308/ IS:1554 (Part-1)/IS 7098 (Part-1), copper conductor, PVC/ XLPE insulated, cores laid up, overall aluminium mylar tape screened with ATC drain wire, PVC inner sheathed, galvanised steel round/ flat galvanized armour, overall PVC sheathed.
SIZE (sq. mm)
VOLTAGE
300V / 500V / 1.1KV
ARMORED
YSWY / YSFY
OUTER SHEATH
PVC / LSZH
CORE
0.5
🟡
🟡
🟡
2C - 37C
0.75
🟡
🟡
🟡
2C - 37C
1
🟡
🟡
🟡
2C - 37C
1.5
🟡
🟡
🟡
2C - 37C
2.5
🟡
🟡
🟡
2C - 37C
🟡 Signifies Available
“GEMSCAB” make unamoured screened cable generally as per BS EN 50288-7/ BS:5308/ IS 1554 (Part-1)/ IS 7098 (Part-1), copper conductor, PVC/ XLPE insulated, cores laid up, overall aluminium mylar tape screened with ATC drain wire, PVC inner sheathed, overall PVC sheathed.
SIZE (sq. mm)
VOLTAGE
300V / 500V / 1.1KV
UNARMORED
YSY
OUTER SHEATH
PVC / LSZH
CORE
0.5
🟡
🟡
🟡
2C - 37C
0.75
🟡
🟡
🟡
2C - 37C
1
🟡
🟡
🟡
2C - 37C
1.5
🟡
🟡
🟡
2C - 37C
2.5
🟡
🟡
🟡
2C - 37C
*XLPE Insulation also available
🟡 Signifies Available
INSTRUMENTATION CABLES - OVERALL SHIELDED PAIR CABLE

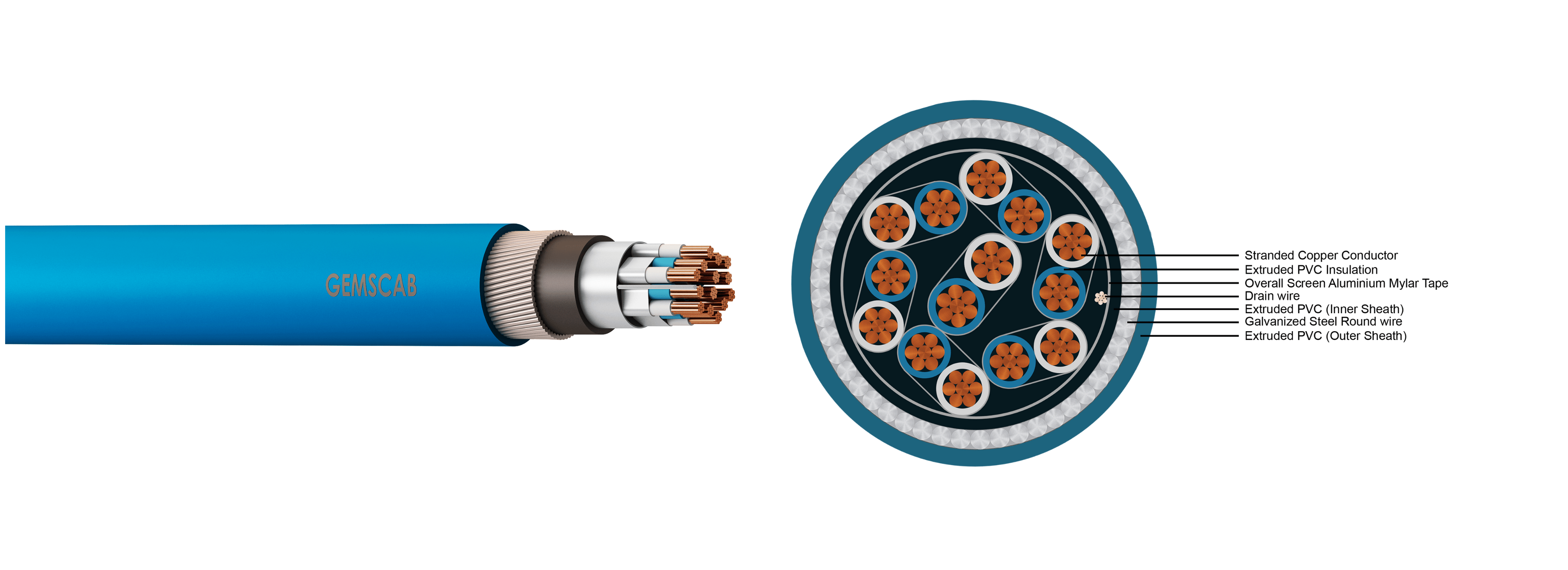

“GEMSCAB” make armoured overall screened pair cable generally as per BS EN 50288-7/ BS:5308/ IS 1554 (Part-1)/ IS 7098 (Part-1), copper conductor, PVC/ XLPE insulated, pairs laid up, overall aluminium mylar tape screened with ATC drain wire, PVC inner sheathed, galvanised steel round/ flat galvanized armour, overall PVC sheathed.
SIZE (sq. mm)
VOLTAGE
300V / 500V / 1.1KV
ARMORED
YSWY / YSFY
OUTER SHEATH
PVC / LSZH
PAIR
0.5
🟡
🟡
🟡
1P - 37P
0.75
🟡
🟡
🟡
1P - 37P
1
🟡
🟡
🟡
1P - 37P
1.5
🟡
🟡
🟡
1P - 37P
2.5
🟡
🟡
🟡
1P - 37P
🟡 Signifies Available
“GEMSCAB” make unarmoured overall screened pair cable generally as per BS EN 50288-7/ BS:5308/ IS 1554 (Part-1)/ IS 7098 (Part-1), copper conductor, PVC/ XLPE insulated, pairs laid up, overall aluminium mylar tape screened with ATC drain wire, PVC inner sheathed, overall PVC sheathed.
SIZE (sq. mm)
VOLTAGE
300V / 500V / 1.1KV
UNARMORED
YSY
OUTER SHEATH
PVC / LSZH
CORE
0.5
🟡
🟡
🟡
2C - 37C
0.75
🟡
🟡
🟡
2C - 37C
1
🟡
🟡
🟡
2C - 37C
1.5
🟡
🟡
🟡
2C - 37C
2.5
🟡
🟡
🟡
2C - 37C
*XLPE Insulation also available
🟡 Signifies Available
INSTRUMENTATION CABLES - INDIVIDUAL & OVERALL SHIELDED PAIR CABLE

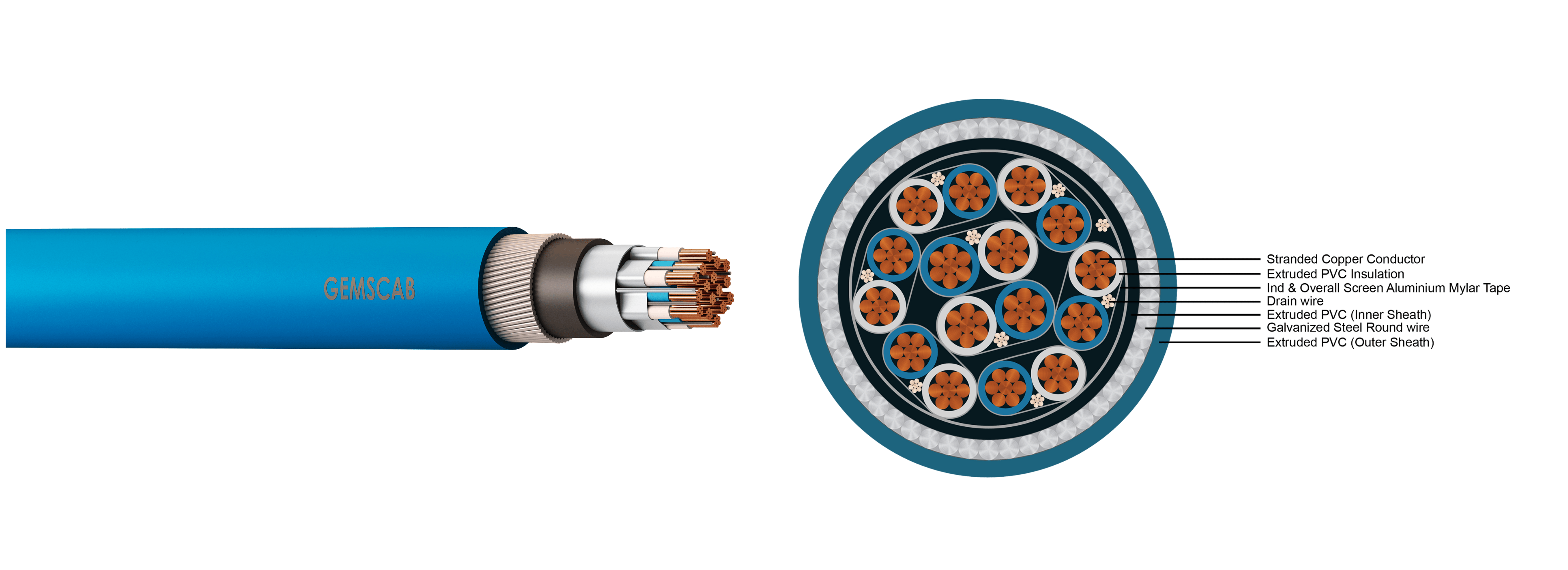

“GEMSCAB” make armoured individual & overall screened pair cable generally as per BS EN 50288-7/ BS:5308/ IS 1554 (Part-1)/ IS 7098 (Part-1), copper conductor, PVC/ XLPE insulated, pairs laid up, individual & overall aluminium mylar tape screened with ATC drain wires, PVC inner sheathed, galvanised steel round/ flat galvanized armour, overall PVC sheathed.
SIZE (sq. mm)
VOLTAGE
300V / 500V / 1.1KV
ARMORED
YSWY / YSFY
OUTER SHEATH
PVC / LSZH
PAIR
0.5
🟡
🟡
🟡
2P - 37P
0.75
🟡
🟡
🟡
2P - 37P
1
🟡
🟡
🟡
2P - 37P
1.5
🟡
🟡
🟡
2P - 37P
2.5
🟡
🟡
🟡
2P - 37P
🟡 Signifies Available
“GEMSCAB” make unarmoured individual & overall screened pair cable generally as per BS EN 50288-7/ BS:5308/ IS 1554 (Part-1)/ IS 7098 (Part-1), copper conductor, PVC/ XLPE insulated, pairs laid up, individual & overall aluminium mylar tape screened with ATC drain wires, PVC inner sheathed, overall PVC sheathed.
SIZE (sq. mm)
VOLTAGE
300V / 500V / 1.1KV
UNARMORED
YSY
OUTER SHEATH
PVC / LSZH
CORE
0.5
🟡
🟡
🟡
2C - 37C
0.75
🟡
🟡
🟡
2C - 37C
1
🟡
🟡
🟡
2C - 37C
1.5
🟡
🟡
🟡
2C - 37C
2.5
🟡
🟡
🟡
2C - 37C
*XLPE Insulation also available
🟡 Signifies Available
INSTRUMENTATION CABLES - OVERALL SHIELDED TRIAD CABLE

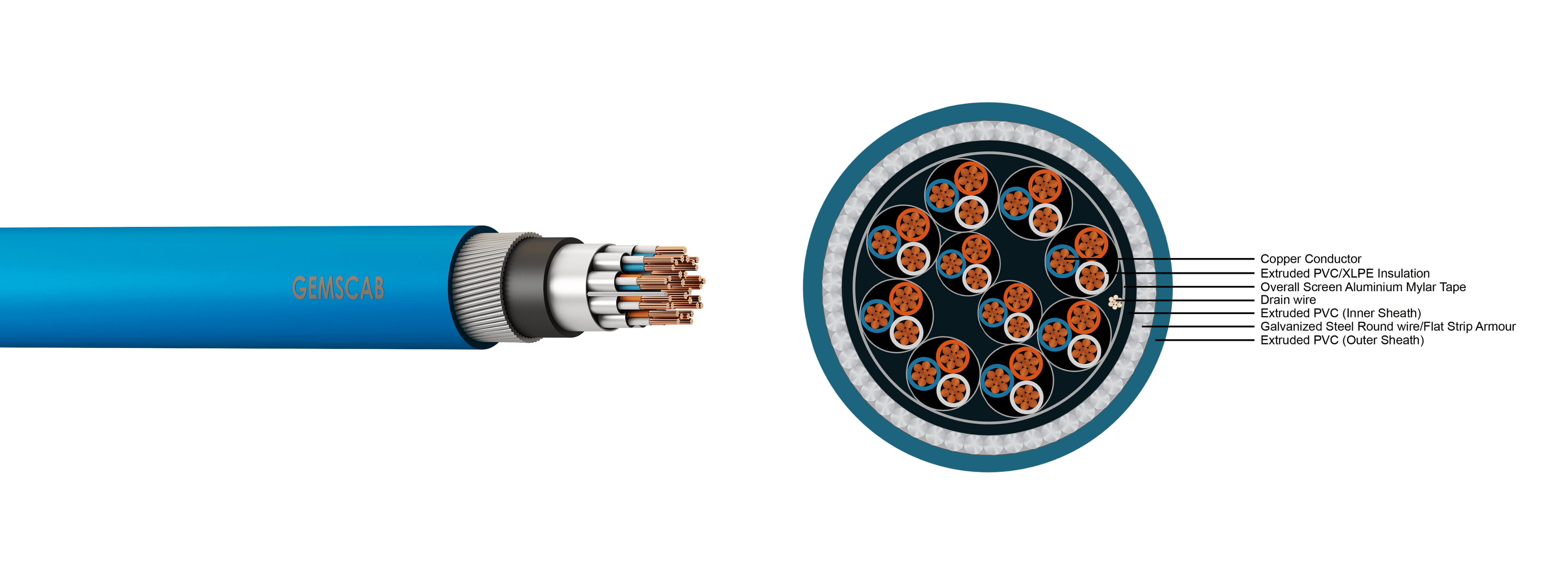

“GEMSCAB” make armoured overall screened traid cable generally as per BSEN 50288-7 / BS:5308 / IS 1554 (Part-1) / IS 7098 (Part-1), copper conductor, PVC / XLPE insulated, triads laid up, overall aluminium mylar tape screened with ATC drain wire, PVC inner sheathed, galvanised steel round / flat galvanized armour, overall PVC sheathed.
SIZE (sq. mm)
VOLTAGE
300V / 500V / 1.1KV
ARMORED
YSWY / YSFY
OUTER SHEATH
PVC / LSZH
TRIAD
0.75
🟡
🟡
🟡
2T - 37T
0.5
🟡
🟡
🟡
2T - 37T
1
🟡
🟡
🟡
2T - 37T
1.5
🟡
🟡
🟡
2T - 37T
2.5
🟡
🟡
🟡
2T - 37T
🟡 Signifies Available
“GEMSCAB” make unarmoured overall screened triad cable generally as per BSEN 50288-7 / BS:5308 / IS 1554 (Part-1) / IS 7098 (Part-1), copper conductor, PVC / XLPE insulated, triads laid up, overall aluminium mylar tape screened with ATC drain wire, PVC inner sheathed, overall PVC sheathed.
SIZE (sq. mm)
VOLTAGE
300V / 500V / 1.1KV
UNARMORED
YSY
OUTER SHEATH
PVC / LSZH
CORE
0.5
🟡
🟡
🟡
2T - 37T
0.75
🟡
🟡
🟡
2T - 37T
1
🟡
🟡
🟡
2T - 37T
1.5
🟡
🟡
🟡
2T - 37T
2.5
🟡
🟡
🟡
2T - 37T
*XLPE Insulation also available
🟡 Signifies Available
INSTRUMENTATION CABLES - INDIVIDUAL & OVERALL SHIELDED TRIAD CABLE

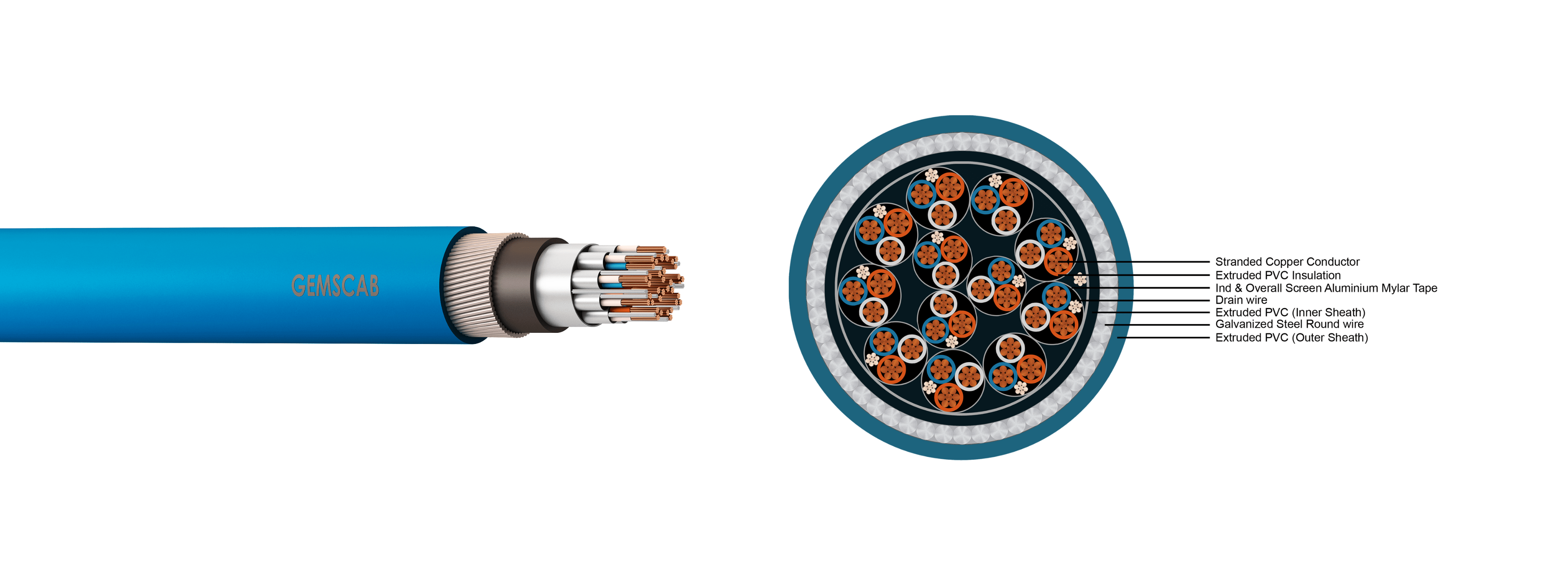

“GEMSCAB” make armoured individual & overall screened triad cable generally as per BSEN 50288-7 / BS:5308 / IS 1554 (Part-1) / IS 7098 (Part-1), copper conductor, PVC / XLPE insulated, triads laid up, individual & overall aluminium mylar tape screened with ATC drain wires, PVC inner sheathed, galvanised steel round / flat galvanized armour, overall PVC sheathed.
SIZE (sq. mm)
VOLTAGE
300V / 500V / 1.1KV
ARMORED
YSWY / YSFY
OUTER SHEATH
PVC / LSZH
TRIAD
0.5
🟡
🟡
🟡
2T - 37T
0.75
🟡
🟡
🟡
2T - 37T
1
🟡
🟡
🟡
2T - 37T
1.5
🟡
🟡
🟡
2T - 37T
2.5
🟡
🟡
🟡
2T - 37T
🟡 Signifies Available
“GEMSCAB” make unarmoured individual & overall screened triad cable generally as per BSEN 50288-7 / BS:5308 / IS 1554 (Part-1) / IS 7098 (Part-1), copper conductor, PVC / XLPE insulated, triads laid up, individual & overall aluminium mylar tape screened with ATC drain wires, PVC inner sheathed, overall PVC sheathed.
SIZE (sq. mm)
VOLTAGE
300V / 500V / 1.1KV
UNARMORED
YSY
OUTER SHEATH
PVC / LSZH
CORE
0.5
🟡
🟡
🟡
2T - 37T
0.75
🟡
🟡
🟡
2T - 37T
1
🟡
🟡
🟡
2T - 37T
1.5
🟡
🟡
🟡
2T - 37T
2.5
🟡
🟡
🟡
2T - 37T
*XLPE Insulation also available
