LV ALUMINIUM POWER CABLES

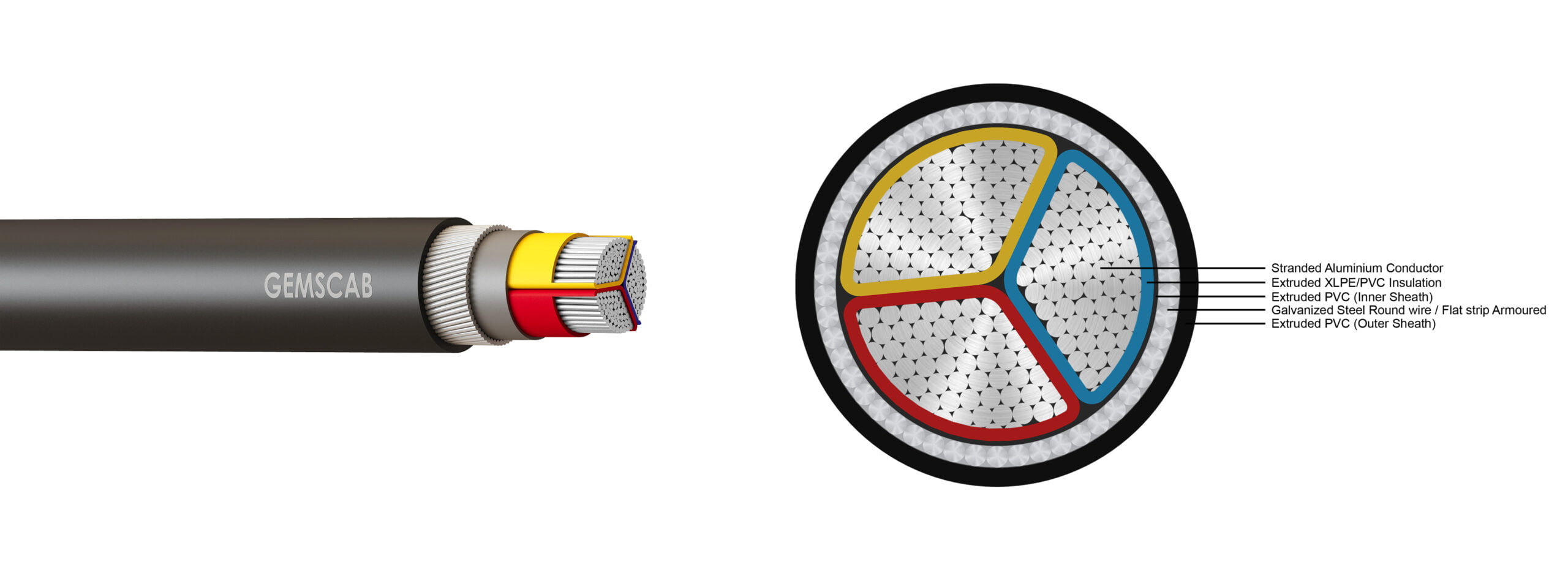

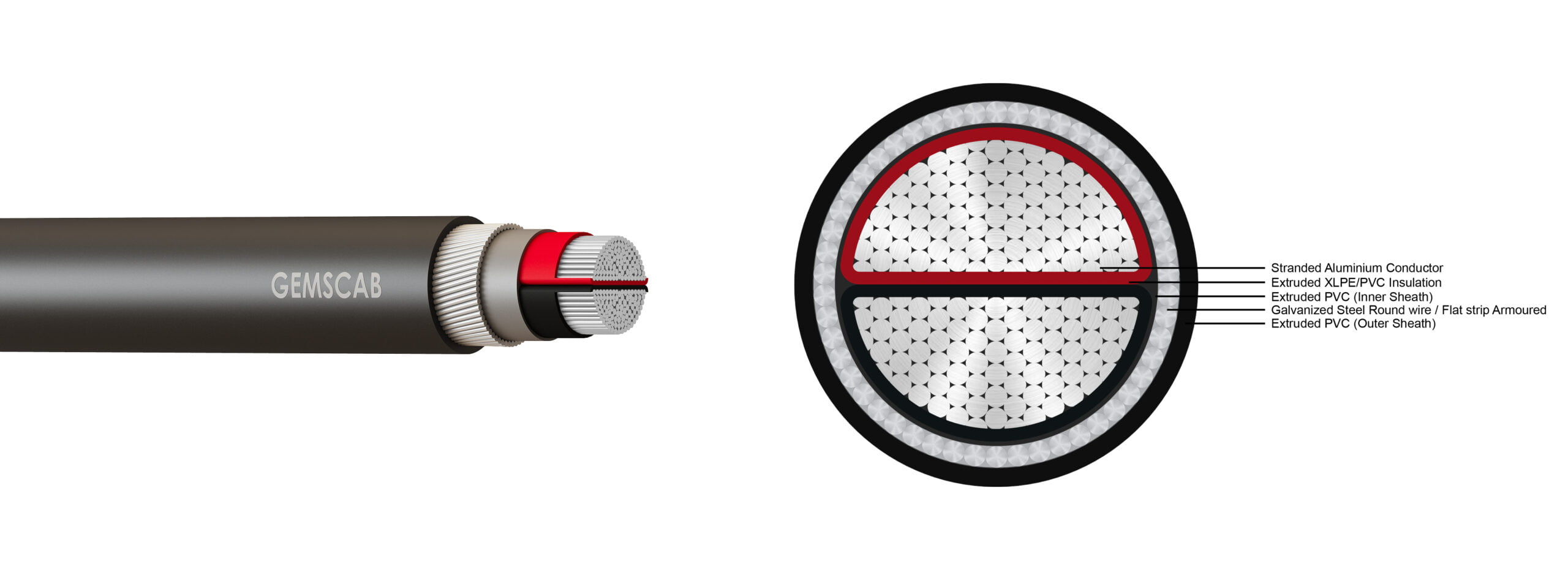

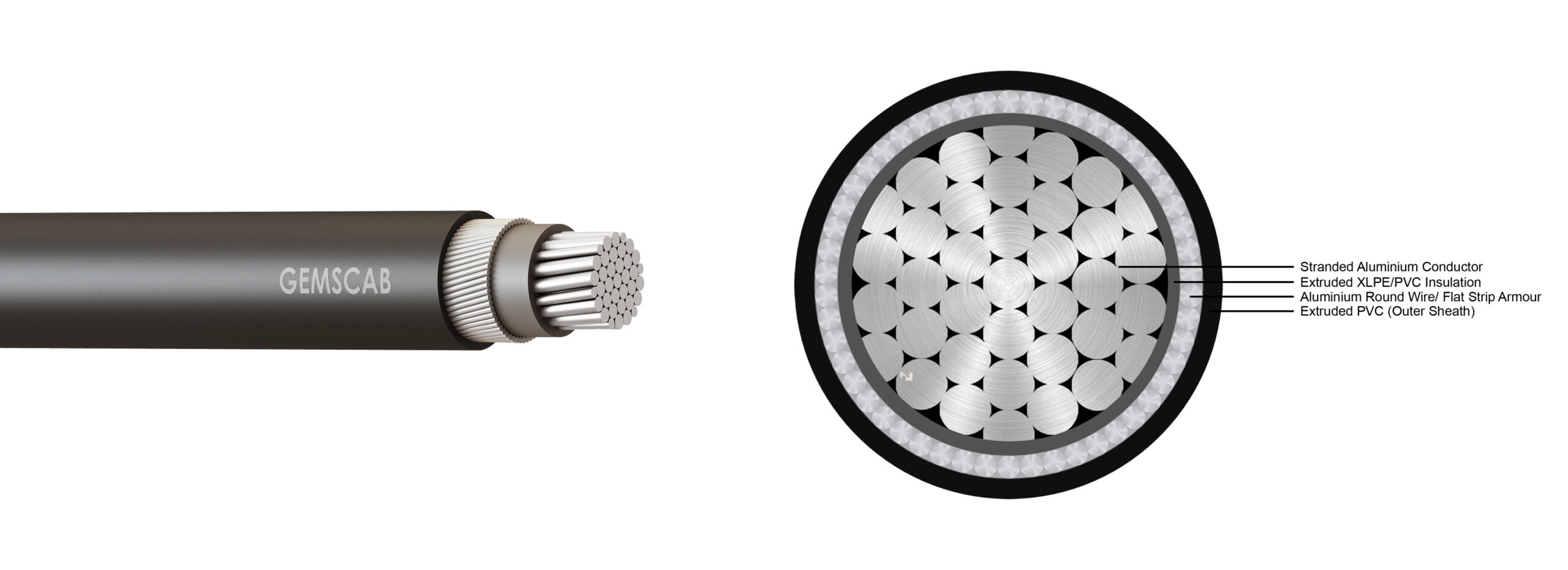

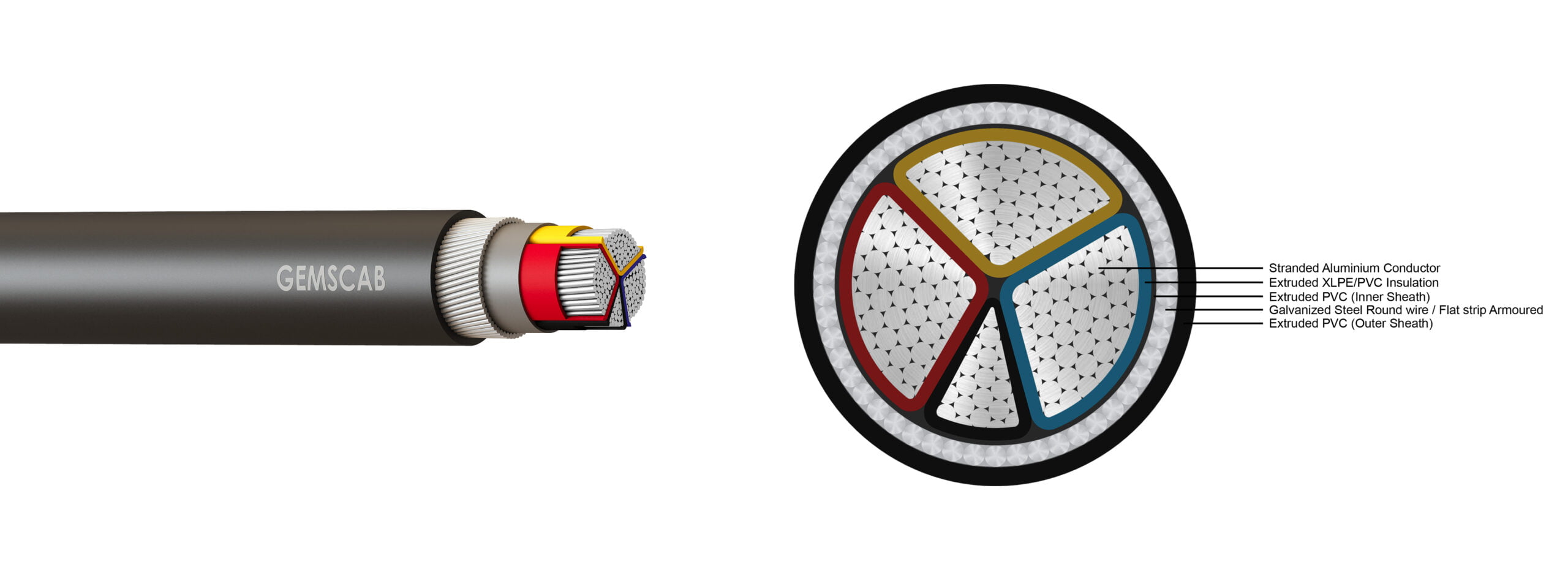

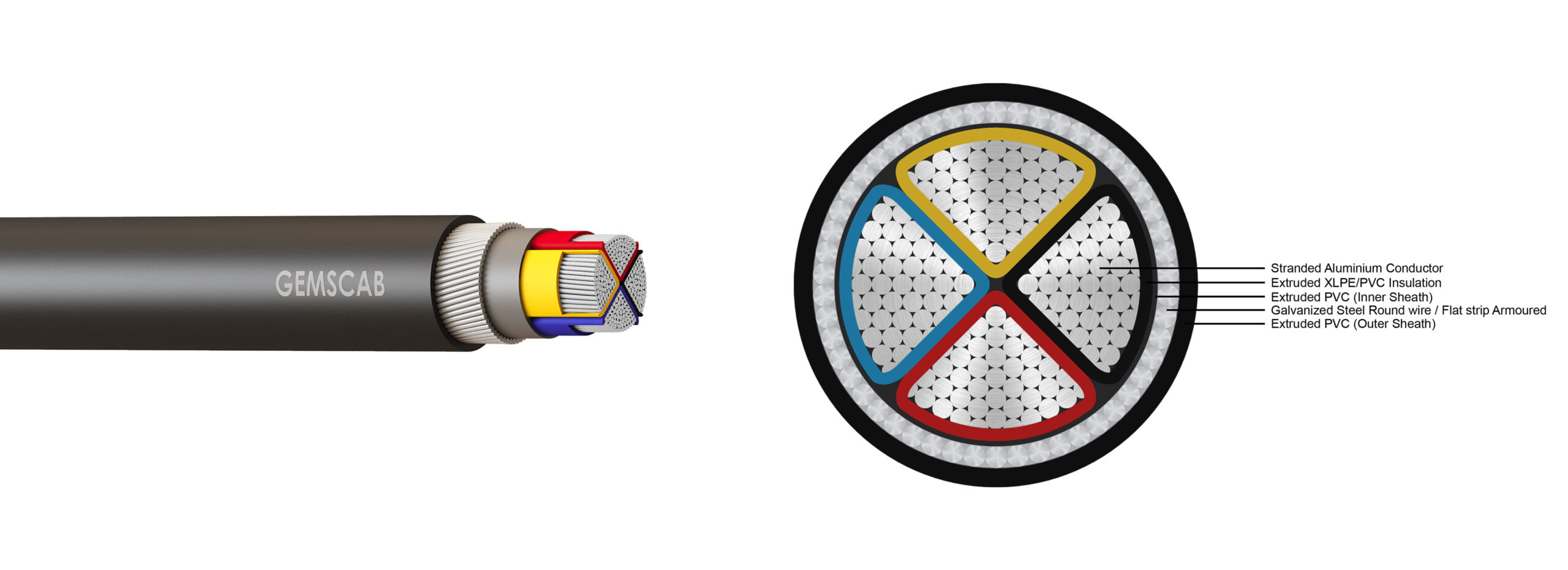

“GEMSCAB” make 1100 V armoured power cable, conforming to IS:7098 (Part-1), aluminium conductor, XLPE insulated, PVC inner sheathed, galvanized steel round wire/ flat strip armoured (For 1 core aluminium armour), overall PVC sheathed.
VOLTAGE
ARMORING
A2XFY / A2XWY
INNER SHEATH
PVC ST2/ FR/ FRLSH/ LSZH
OUTER SHEATH
PVC ST2/ FR/ FRLSH/ LSZH
SIZE
sq.mm
1 CORE
🟡
🟡
16 - 1000
2 CORE
🟡
🟡
🟡
6 - 630
3 CORE
🟡
🟡
🟡
6 - 630
3.5 CORE
🟡
🟡
🟡
25 - 630
4 CORE
🟡
🟡
🟡
6 - 630
🟡 Signifies Available
Signifies Unavailable
“GEMSCAB” make 1100 V unarmoured power cable, conforming to IS:7098 (Part-1), aluminium conductor, XLPE insulated, cores laid up, PVC inner sheathed, overall PVC sheathed.
VOLTAGE
ARMORING
A2XY
INNER SHEATH
PVC ST2/ FR/ FRLSH/ LSZH
OUTER SHEATH
PVC ST2/ FR/ FRLSH/ LSZH
SIZE
sq.mm
1 CORE
🟡
🟡
🟡
16 - 1000
2 CORE
🟡
🟡
🟡
6 - 630
3 CORE
🟡
🟡
🟡
6 - 630
3.5 CORE
🟡
🟡
🟡
25 - 630
4 CORE
🟡
🟡
🟡
6 - 630
🟡 Signifies Available
LV COPPER POWER CABLES

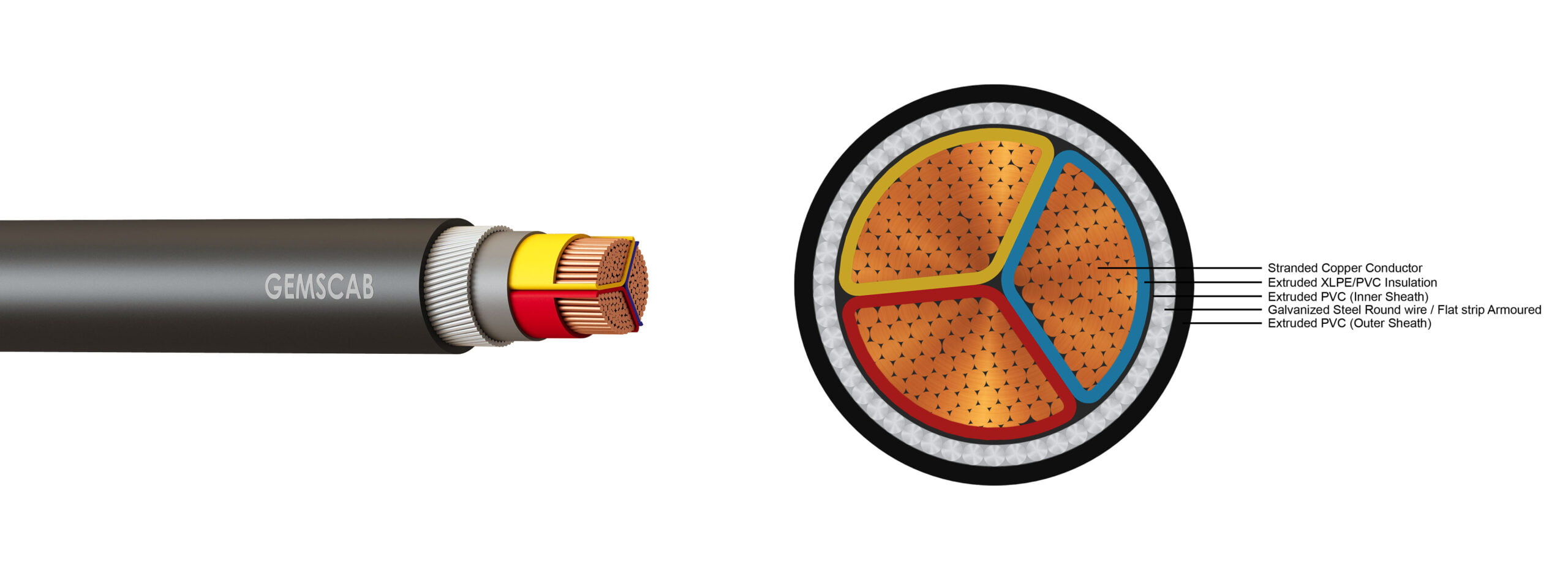

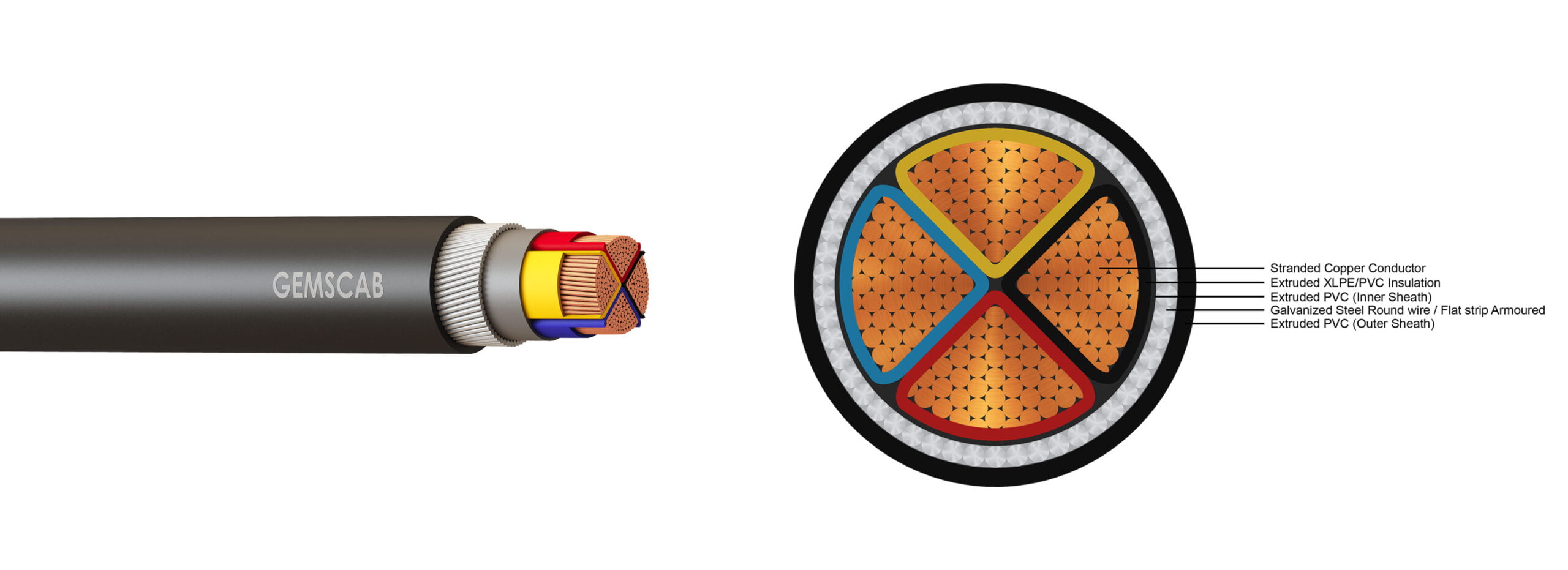

“GEMSCAB” make 1100 V armoured power cable, conforming to IS:7098 (Part-1), copper conductor, XLPE insulated, PVC inner sheathed, galvanized steel round wire/ flat strip armoured (For 1 Core aluminium armour), overall PVC sheathed.
VOLTAGE
ARMORING
2XFY / 2XWY
INNER SHEATH
PVC ST2/ FR/ FRLSH/ LSZH
OUTER SHEATH
PVC ST2/ FR/ FRLSH/ LSZH
SIZE
sq.mm
1 CORE
🟡
🟡
16 - 800
2 CORE
🟡
🟡
🟡
4 - 400(*)
3 CORE
🟡
🟡
🟡
4 - 400(*)
3.5 CORE
🟡
🟡
🟡
25 - 400(*)
4 CORE
🟡
🟡
🟡
4 - 400(*)
* Above cables can be supplied upto 630 sq.mm on request
🟡 Signifies Available
Signifies Unavailable
“GEMSCAB” make 1100 V unarmoured power cable, conforming to IS:7098 (Part-1), copper conductor, XLPE insulated, cores laid up, PVC inner sheathed, overall PVC sheathed.
VOLTAGE
ARMORING
2XY
INNER SHEATH
PVC ST2/ FR/ FRLSH/ LSZH
OUTER SHEATH
PVC ST2/ FR/ FRLSH/ LSZH
SIZE
sq.mm
1 CORE
🟡
🟡
🟡
16 - 800
2 CORE
🟡
🟡
🟡
4 - 400
3 CORE
🟡
🟡
🟡
4 - 400
3.5 CORE
🟡
🟡
🟡
25 - 400
4 CORE
🟡
🟡
🟡
4 - 400
🟡 Signifies Available
LV ARMORED CONTROL CABLES
“GEMSCAB” make 1100 V grade armoured control cable conforming to IS:7098 (Part-1), stranded/ solid copper conductor, XLPE insulated, PVC inner sheathed, galvanised steel round/ flat galvanized armour, overall PVC sheathed. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.
SIZE (sq. mm)
ARMORING
2XFY / 2XWY
INNER SHEATH
PVC ST2 / FR / FRLSH / LSZH
OUTER SHEATH
PVC ST2 / FR / FRLSH / LSZH
CORE
1.5
🟡
🟡
🟡
2C - 61C
2.5
🟡
🟡
🟡
2C - 61C
🟡 Signifies Available
LV UNARMORED CONTROL CABLES
“GEMSCAB” make 1100 V grade unarmoured control cable conforming to IS:7098 (Part-1), stranded/ solid copper conductor, XLPE insulated, PVC inner sheathed, overall PVC sheathed. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.
SIZE (sq. mm)
INSULATION PROPERTIES
ARMORING
2XY
INNER SHEATH
PVC ST2 / FR / FRLSH / LSZH
OUTER SHEATH
PVC ST2 / FR / FRLSH / LSZH
CORE
1.5
🟡
🟡
🟡
2C - 37C
1.5
🟡
🟡
🟡
2C - 37C
🟡 Signifies Available
