GEMSCAB

LV COPPER BRAIDED CABLES

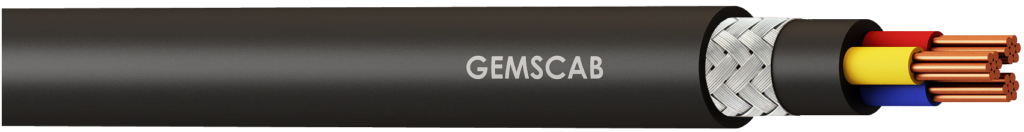

“GEMSCAB” make 1100 V Braided cable, generally conforming to IS:7098 (PT:I), Copper conductor, XLPE insulated, cores laid up, PVC inner sheathed, Annealed Tinned Copper Braided/ Galvanized Steel Braided, overall PVC sheathed.

VOLTAGE

ARMORING

2XWBY

INNER SHEATH

PVC ST2/ FR/ FRLSH/ LSZH

OUTER SHEATH

PVC ST2/ FR/ FRLSH/ LSZH

SIZE

2 CORE

🟡

🟡

🟡

1.0 sq.mm - 95 sq.mm

3CORE

🟡

🟡

🟡

1.0 sq.mm - 70 sq.mm

3.5CORE

🟡

🟡

🟡

25 sq.mm - 50 sq.mm

4CORE

🟡

🟡

🟡

1.0 sq.mm - 50 sq.mm

🟡 Signifies Available

“GEMSCAB” make 1100 V Braided cable, generally conforming to IS:7098 (PT:I), Copper conductor, XLPE insulated, cores laid up, overall shielded, Annealed Tinned Copper Braided/ Galvanized Steel Braided, PVC inner sheathed, Galvanized Steel Round Wire/ Flat Strip armoured, overall PVC sheathed.

VOLTAGE

ATC/ GS BRAIDING

2XWBFY/ 2XWBWY

INNER SHEATH

PVC ST2/ FR/ FRLSH/ LSZH

ARMORING

GS STRIP / ROUND WIRE

OUTER SHEATH

PVC ST2/ FR/ FRLSH/ LSZH

SIZE

2CORE

🟡

🟡

🟡

🟡

1.0 sq.mm - 120 sq.mm

3CORE

🟡

🟡

🟡

🟡

1.0 sq.mm - 70 sq.mm

3.5CORE

🟡

🟡

🟡

🟡

25 sq.mm - 50 sq.mm

4CORE

🟡

🟡

🟡

🟡

1.0 sq.mm - 50 sq.mm

🟡 Signifies Available

LV ALUMINIUM BRAIDED CABLES

“GEMSCAB” make 1100 V Braided cable, generally conforming to IS:7098 (PT:I), Aluminium conductor, XLPE insulated, cores laid up, PVC inner sheathed, annealed Tinned Copper Braided/ Galvanized Steel Braided, overall PVC sheathed cable.

VOLTAGE

ARMORING

A2XWBY

INNER SHEATH

PVC/ FR/ FRLSH/ LSZH

OUTER SHEATH

PVC/ FR/ FRLSH/ LSZH

SIZE

2 CORE

🟡

🟡

🟡

6 sq.mm - 95 sq.mm

3 CORE

🟡

🟡

🟡

6 sq.mm - 70 sq.mm

3.5 CORE

🟡

🟡

🟡

25 sq.mm - 50 sq.mm

4 CORE

🟡

🟡

🟡

6 sq.mm - 50 sq.mm

🟡 Signifies Available

“GEMSCAB” make 1100 V Braided cable, generally conforming to IS:7098 (PT:I), Aluminium conductor, XLPE insulated, cores laid up, overall shielded, Annealed Tinned Copper Braided/ Galvanized Steel Braided, PVC inner sheathed, Galvanized Steel Round Wire/ Flat Strip armoured, overall PVC sheathed.

VOLTAGE

ATC/ GS BRAIDING

A2XWBFY/ A2XWBWY

INNER SHEATH

PVC/ FR/ FRLSH/ LSZH

ARMORING

GS STRIP/ ROUND WIRE

OUTER SHEATH

PVC/ FR/ FRLSH/ LSZH

SIZE

2 CORE

🟡

🟡

🟡

🟡

6 sq.mm - 120 sq.mm

3 CORE

🟡

🟡

🟡

🟡

6 sq.mm - 70 sq.mm

3.5 CORE

🟡

🟡

🟡

🟡

25 sq.mm - 50 sq.mm

4 CORE

🟡

🟡

🟡

🟡

6 sq.mm - 50 sq.mm

🟡 Signifies Available
