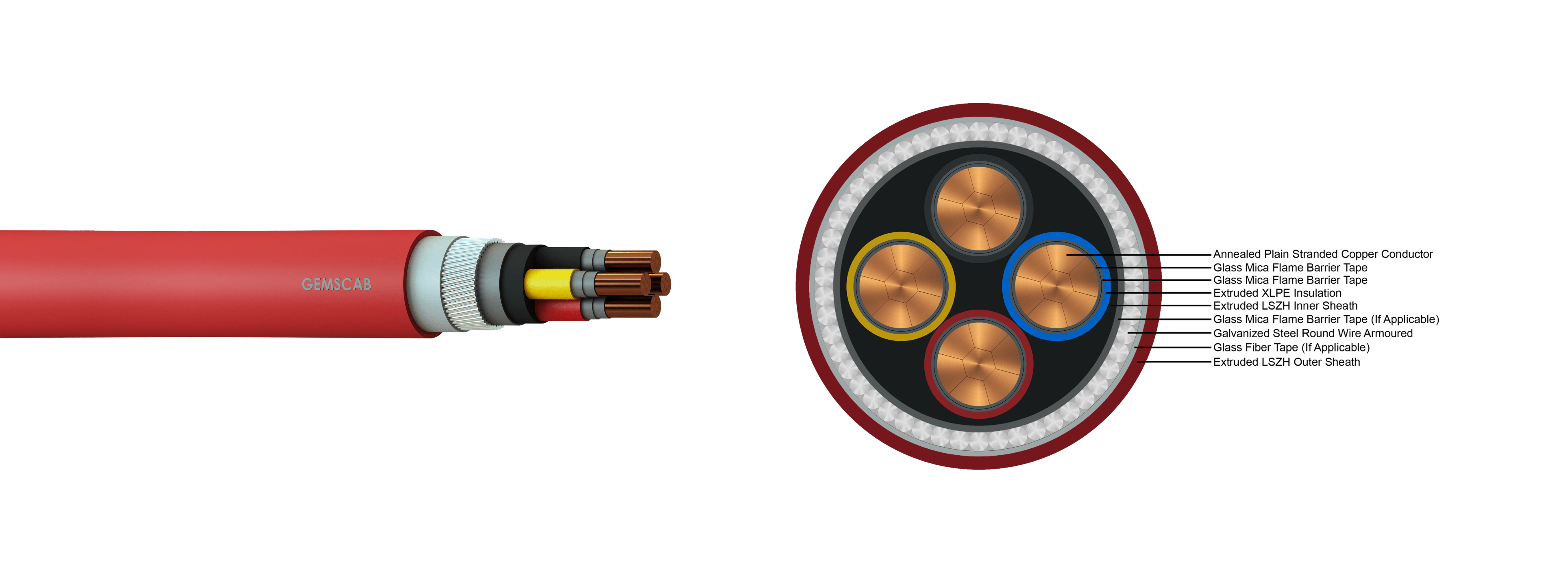

COPPER FIRE SURVIVAL CABLES
“GEMSCAB” make low voltage armour Fire Survival Cable generally confirming to BS:7846 & IS:17505:PART1:2021, copper conductor, two layers of glass mica flame barrier tape , XLPE insulated, LSZH inner sheathed, one layer glass mica flame barrier tape (if required), galvanized steel round wire armoured, glass fiber tape (if required), overall LSZH sheathed.
Number OF Cores
Glass Mica Flame Barrier Tape
2XWZ
ARMORING
Round Wire armour
INNER SHEATH
LSZH
OUTER SHEATH
LSZH
SIZE (sq.mm)
2CORE
🟡
🟡
🟡
🟡
1.5-400
3CORE
🟡
🟡
🟡
🟡
1.5-400
4CORE
🟡
🟡
🟡
🟡
1.5-400
5CORE
🟡
🟡
🟡
🟡
1.5-70
Multi core (upto 48 Core)
🟡
🟡
🟡
🟡
1.5-70
🟡 Signifies Available

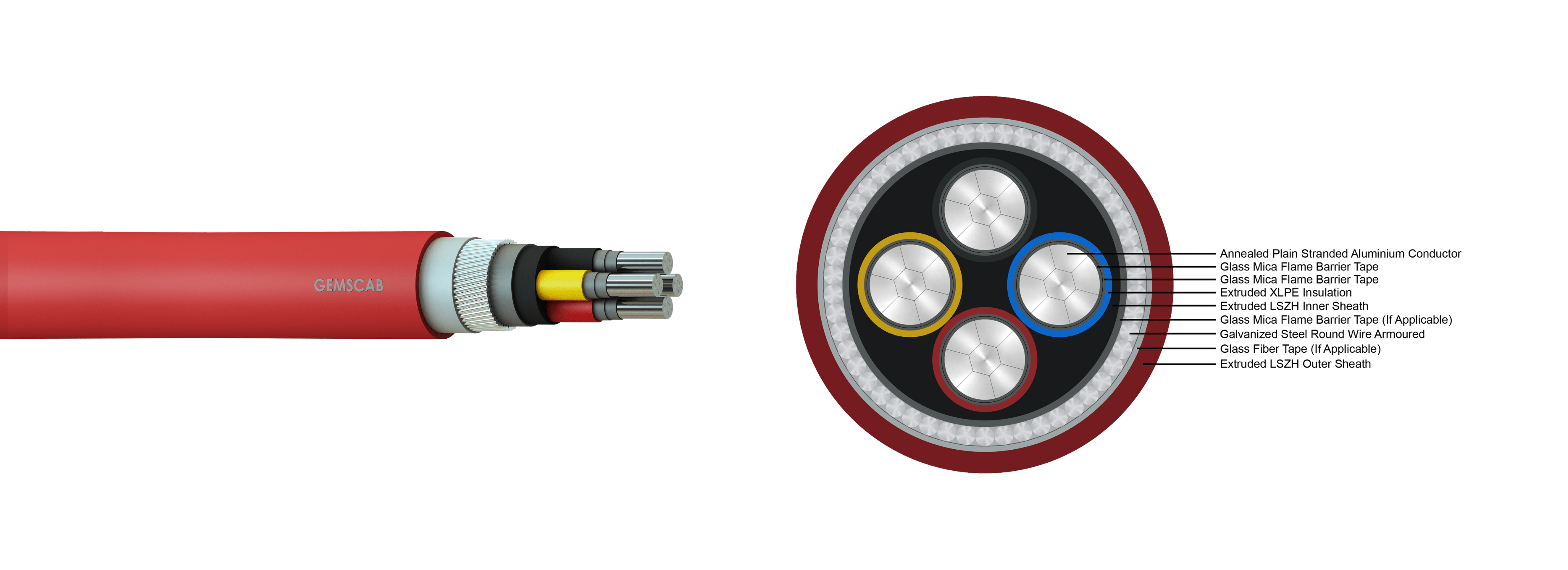

ALUMINIUM FIRE SURVIVAL CABLES
“GEMSCAB” make low voltage armour Fire Survival Cable generally confirming to BS:7846 & IS:17505:PART1:2021, aluminium conductor, two layers of glass mica flame barrier tape, XLPE insulated, LSZH inner sheathed, one layer glass mica flame barrier tape (if required), galvanized steel round wire armoured, glass fiber tape (if required), overall LSZH sheathed.
Number OF Cores
Glass Mica Flame Barrier Tape
2XWZ
ARMORING
Round Wire armour
INNER SHEATH
LSZH
OUTER SHEATH
LSZH
SIZE (sq.mm)
2CORE
🟡
🟡
🟡
🟡
16-400
3CORE
🟡
🟡
🟡
🟡
16-400
4CORE
🟡
🟡
🟡
🟡
16-400
