1CORE POWER CABLES (CORRUGATED)

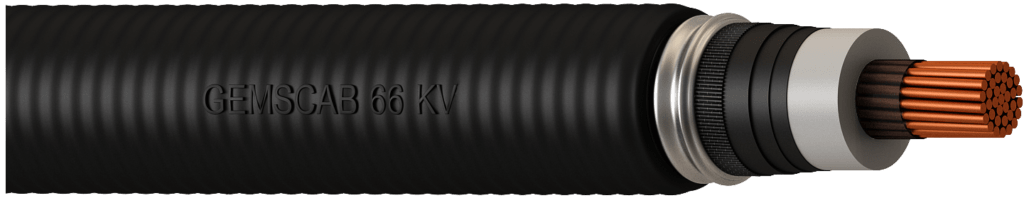

“GEMSCAB” make 1 Core Extra High Voltage armour cable confirming to IS:7098 (PT-III), stranded aluminium conductor, conductor shielded with extruded semiconducting compound, XLPE insulated, core shielded with semiconducting compound, Synthetic non-woven semi conducting water swell-able tape followed by copper woven semi-conducting water swellable tape, Corrugated Aluminum sheath, overall Thermoplastic Polyethylene (HDPE) sheathed.
VOLTAGE
CONDUCTOR SCREENING
A2XA2Y
INSULATION SCREENING
PVC ST2/ FR/ FRLSH/ LSZH
CORRUGATED ALUMINIUM SHEATH
PVC ST2/ FR/ FRLSH/ LSZH
OUTER SHEATH
HDPE
SIZE
150 sq.mm - 630 sq.mm
38/66 KV (E)
🟡
🟡
🟡
🟡
🟡
🟡 Signifies Available
“GEMSCAB” make 1 Core Extra High Voltage armour Cable confirming to IS:7098 (PT-III), stranded copper conductor, conductor shielded with extruded semiconducting compound, XLPE insulated, core shielded with semiconducting compound, Synthetic non-woven semi conducting water swell-able tape followed by copper woven semi-conducting water swellable tape, Corrugated Aluminum sheath, overall Thermoplastic Polyethylene (HDPE) sheathed.
VOLTAGE
CONDUCTOR SCREENING
2XA2Y
INSULATION SCREENING
PVC ST2/ FR/ FRLSH/ LSZH
CORRUGATED ALUMINIUM SHEATH
PVC ST2/ FR/ FRLSH/ LSZH
OUTER SHEATH
HDPE
SIZE
150 sq.mm - 630 sq.mm
38/66 KV (E)
🟡
🟡
🟡
🟡
🟡
🟡 Signifies Available
1CORE POWER CABLES (POLYAL)
“GEMSCAB” make 1 Core Extra High Voltage armour cable confirming to IS:7098 (PT-III), stranded aluminium conductor, conductor shielded with extruded semiconducting compound, XLPE insulated, core shielded with semiconducting compound, synthetic non-woven semi conducting water swell-able tape followed by moisture barrier tape, Thermoplastic Polyethylene (HDPE) inner sheath, Aluminium round wire armour, overall Thermoplastic Polyethylene (HDPE) sheathed
VOLTAGE
CONDUCTOR SCREENING
A2XCWa2Y
INSULATION SCREENING
PVC ST2/ FR/ FRLSH/ LSZH
ARMOUR
PVC ST2/ FR/ FRLSH/ LSZH
OUTER SHEATH
HDPE
SIZE
150 sq.mm - 630 sq.mm
38/66 KV (E)
🟡
🟡
🟡
🟡
🟡
* Above cables can be supplied upto 630 sq.mm on request
🟡 Signifies Available
“GEMSCAB” make 1 Core Extra High Voltage armour cable confirming to IS:7098 (PT-III), stranded copper conductor, conductor shielded with extruded semiconducting compound, XLPE insulated, core shielded with semiconducting compound, synthetic non-woven semi conducting water swell-able tape followed by moisture barrier tape, Thermoplastic Polyethylene (HDPE) inner sheath, Aluminium round core armour, overall Thermoplastic Polyethylene (HDPE) sheathed.
VOLTAGE
CONDUCTOR SCREENING
2XCWa2Y
INSULATION SCREENING
PVC ST2/ FR/ FRLSH/ LSZH
ARMOUR
PVC ST2/ FR/ FRLSH/ LSZH
OUTER SHEATH
HDPE
SIZE
150 sq.mm - 630 sq.mm
38/66 KV (E)
🟡
🟡
🟡
🟡
🟡
🟡 Signifies Available
