MEDIUM VOLTAGE COVERED CONDUCTORS (MVCC)

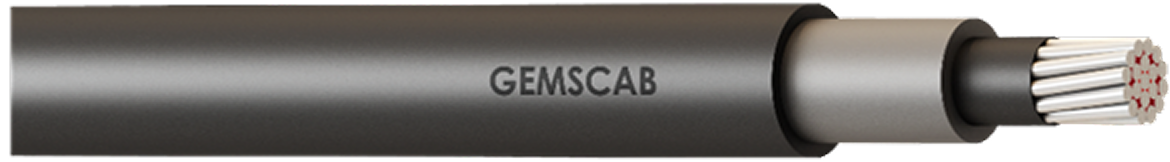

“Gemscab” make, Stranded round non compacted conductor (AAAC/ ACSR/ AL-7/ AL-59), Extruded longitudinally water blocking layer applied over the center strand of conductor, Non magnetic screening by extruded semiconducting compound, XLPE insulated and Outer covered with Tracking Resistance & UV resistant XLPE, 11/22/33/66 KV grade conductor.
Applicable Standards : SS-EN 50397-1, BS EN 50182, IS 398-2, IS 398-4, IEC 61089, IS 10418, SS 4240813, SS 4240814
Construction :
>> Conductor: Longitudinally water tight ACSR/AAAC/AL-7/AL59 or high temperature conductor
>> Conductor Screen: Water swellable semi-conducting tape (if required) and extruded semi-conducting compound
>> Inner Insulation: XL PE
>> Outer Insulation: UV protected and anti-tracking black coloured XLPE / HDPE
>> Conductor screen, inner insulation and outer insulation coextruded and bonded together.
Advantages of MVCC :
1. Cable failure rate is less during heavy wind and stormy conditions.
2. Surrounding interference like surge and lighting voltage can be drained through Arc device
3. Tracking taken care by tracking compound
4. Environmental stress cracking taken care by ultraviolet property
5. Water penetration taken care by water blocking layer
6. Water tree on insulation due to vaporized water ingrass protected by water sealing properties.
